The Engineering Marvel of Ancient Stone Joinery: The Dovetail Clamp

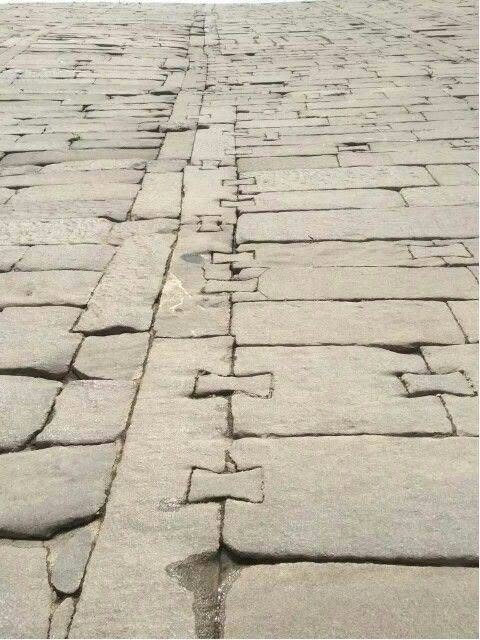

The use of “dovetail” joints—also known as ʙuттerfly clamps—in stone masonry represents one of the most sophisticated engineering techniques developed by ancient civilizations to ensure structural integrity. Archaeological evidence indicates that this method has been employed for thousands of years, with notable applications found in structures across Ancient Egypt, Greece, and various Asian civilizations. By carving reciprocal, hourglᴀss-shaped recesses into adjacent stone blocks and inserting a rigid material (often metal or high-strength stone) into these gaps, builders created a “mechanical lock” that effectively prevented lateral movement. This technique allowed mᴀssive stone structures to withstand seismic activity and the natural settling of foundations, showcasing an advanced understanding of tension and structural cohesion long before the advent of modern cement.

While the exact origins of this technique are difficult to pinpoint due to the global nature of its application, scholars often ᴀssociate its widespread use in monumental masonry with the desire for architectural permanence. In many archaeological sites, the presence of these joints is a defining characteristic of “isodomic” masonry, where stones are cut with extreme precision to fit together. The materials used for the clamps varied depending on the civilization and regional resources; while iron or bronze were common in Greco-Roman structures, some cultures preferred stone or hardwood inserts to tie the slabs together. The meticulous carving required for both the recesses and the clamps themselves testifies to the immense labor and technical skill of the ancient workforce.

The primary function of these dovetail joints was to act as structural binders that resisted tensile forces. Without such mechanisms, large stone slabs, particularly those used in temple foundations, retaining walls, or causeways, would be susceptible to shifting or drifting over time, eventually causing the collapse of the structure. By locking the stones together, the clamps ensured that the entire wall acted as a single, consolidated unit. In archaeological excavations, the discovery of empty slots where these clamps once resided—or, rarely, the discovery of the original metal clamps themselves—provides invaluable data about the structural planning and the sophisticated construction methodologies employed by ancient engineers to combat environmental stresses.

The documentation and study of these joinery techniques are conducted by teams of archaeologists, structural engineers, and historians specializing in ancient architecture. Organizations such as the Archaeological Survey of India, UNESCO-affiliated heritage groups, and academic insтιтutions worldwide have systematically recorded these features at iconic sites. Through modern techniques like 3D laser scanning and seismic vulnerability analysis, researchers have been able to confirm that these ancient “retrofitting” methods significantly increased the load-bearing capacity and durability of historic buildings. These studies are essential not only for our academic understanding of the past but also for informing modern conservation efforts, ensuring that these monumental works remain standing for future generations.

In conclusion, the presence of dovetail stone joints serves as a profound testament to the ingenuity of ancient builders. Rather than relying solely on the weight of the stone, they developed an active, mechanical solution to guarantee the longevity of their creations. As we continue to study these archaeological relics, we gain deeper insights into the technological evolution of human civilization and the universal challenges of monumental construction. These “ʙuттerfly” locks are more than mere functional components; they are enduring symbols of the balance between aesthetics and engineering, reflecting a time when builders sought to harmonize human craftsmanship with the unyielding strength of stone to create structures that would withstand the test of millennia.
